Bolamaranahalli village, Kasaba Hobli , Nelamangala Taluk, Bangalore rural District.

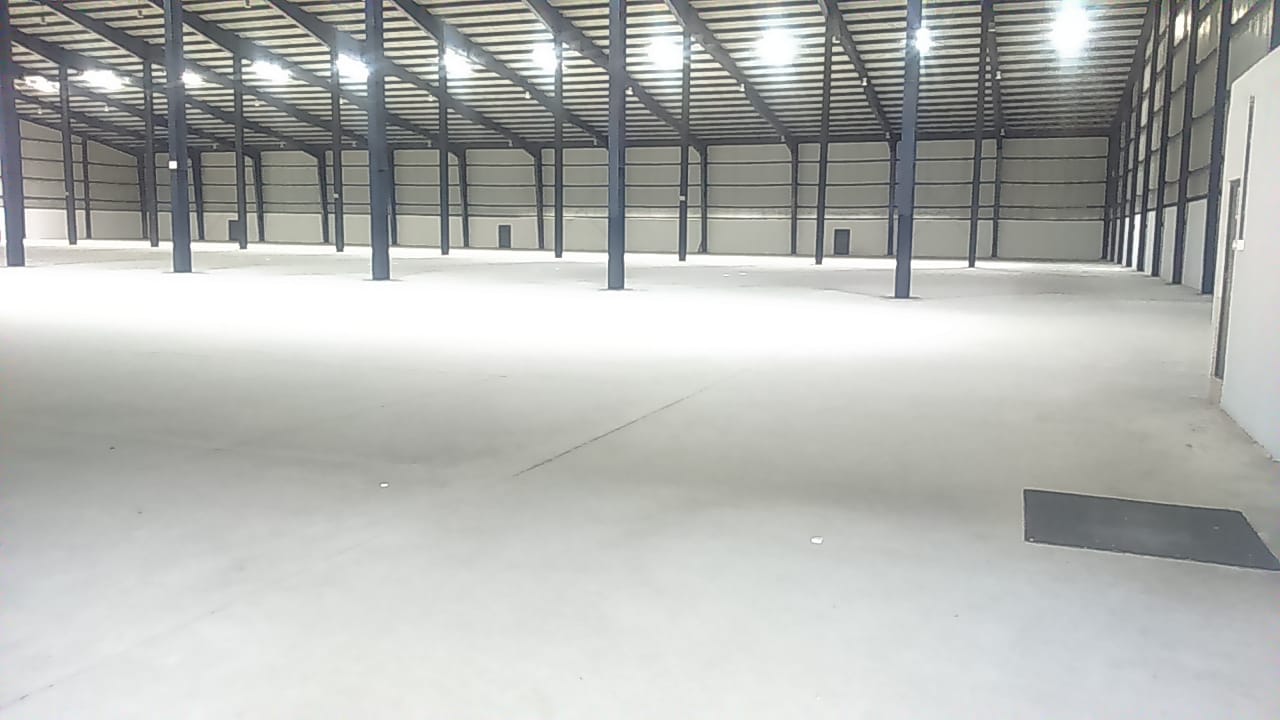

This is a state of the art facility, and the warehouse is a modern Pre Engineered Building structure.
BLOCK 01 - 84,040 Sft [440 ft x 191 ft] (builtup area)
BLOCK 02 - 87,984 Sft [312ft x 282 ft] (builtup area)
TOTAL AREA – 1, 72, 024 Sft
STATUS OF CONSTRUCTION: (except road, fire hydrant and some minor works)
Warehouse Building Block 01 = 100% completed
Warehouse Building Block 02 = 100% completed
[PEB] Pre-Engineered Building.
Pre-Painted Galvalume sheet roofing.
Sufficient Turbo-ventilators for to maintain inside temperature and good ventilation
Sufficient area of sky-light for day operations and well lighted for night operations.
Sidewalls in masonry upto 3.0 mtr level from FFL and Galvalume colored sheet cladding
The warehouse has elevated platform of 4 ft above internal road level for chassis
stuffing with continuous 1.8 mtr wide platform.
The floor is R.C.C. M 20 grade, designed to sustain a live load of no less than 6 ton per sqm.
The warehouse floor is vacuum dewatered, VDF finish with hardener top finish.The general headroom clearance is Block 01- 48’ ft & Block 02 – 54’ ft at the center from the
finished floor level to the lower most level (i.e. rafter/beam bottom) is 31’ ft at eve level
The Warehouse internal dimensions are Block 01 - 440 ft x 191ft and Block 02 – 312 ft x
Only one center support provided for sufficient free movement of goods and material
Each bay will have rolling shutters admeasuring 12 ft x 10 ft.
The designated loading and unloading bay(s) have been designed to be protected from
the weather by a 4.5 mtr canopy beyond the building line and 5.5 mtr above from road
Access is provided to enter inside the warehouse is as per attached drawing.
Gate cabins at entry and exit points of the Complex.
